Question #41

When performing live firmware upgrades on Aruba APs.

Which technology partitions all the APs based on RF neighborhood data minimizing the impact on clients?

A . Aruba ClientMatch
B . Aruba Ai insights
C . Aruba AirMatch
D . Aruba ESP

Lösung einblenden Lösung ausblenden

Question #42

What is the recommended UXI monitoring solution in large logistic facilities?

A . Use a special ruggedized UXI sensor.
B . Use the UXI App on all handheld devices running on Windows CE.
C . Add a UXI sensor in every aisle of the logistic space.
D . Use the UXI App direct on Zebra scanning devices running on Android.

Lösung einblenden Lösung ausblenden

Question #43

DRAG DROP

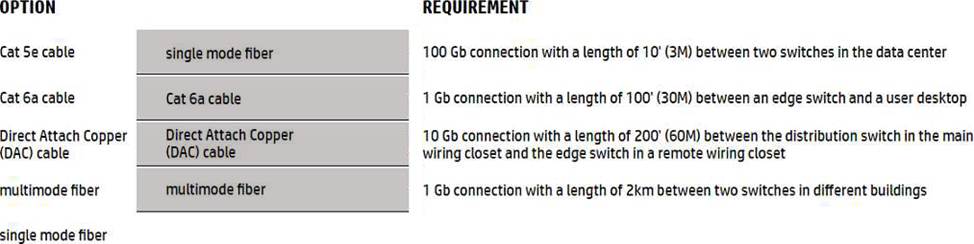

Match the most cost-effective option for cabling each requirement. (All lengths indicate total cable length including patch cable(s), service loops, etc. where used.)

Lösung einblenden Lösung ausblenden

Question #44

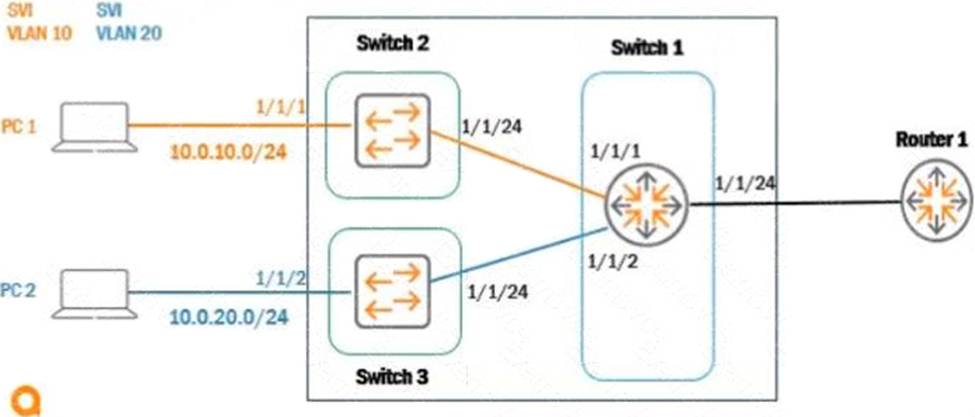

Based on the given topology, what is the requirement on an Aruba switch to enable LLDP messages to be received by Switch 1 port 1/1/24.

When Router 1 is enabled with LLDP?

A . LLDP is enabled by default
B . global configuration lldp enable
C . int 1/1/24, lldp receive
D . int 1/1/24, no cdp

Lösung einblenden Lösung ausblenden

Question #45

When using an Aruba standalone AP you select "Native VLAN" for the Client VLAN Assignment.

In which subnet will the client IPs reside?

A . The same subnet as the mobility controller
B . The same subnet as the Aruba ESP gateway
C . The same subnet as the mobility conductor
D . The same subnet as the access point

Lösung einblenden Lösung ausblenden

Question #46

Which flew in a Layer 3 IPv4 packet header is used to mitigate Layer 3 route loops?

A . Checksum
B . Time To Live
C . Protocol
D . Destination IP

Lösung einblenden Lösung ausblenden

Richtige Antwort: B
B

Explanation:

The field in a Layer 3 IPv4 packet header that is used to mitigate Layer 3 route loops is Time To Live (TTL). TTL is an 8-bit field that indicates the maximum number of hops that a packet can traverse before being discarded. TTL is set by the source device and decremented by one by each router that forwards the packet. If TTL reaches zero, the packet is dropped and an ICMP Internet Control Message Protocol (ICMP) Internet Control Message Protocol (ICMP) is a network protocol that provides error reporting and diagnostic functions for IP networks. ICMP is used to send messages such as echo requests and replies (ping), destination unreachable, time exceeded, parameter problem, source quench, redirect, etc. ICMP messages are encapsulated in IP datagrams and have a specific format that contains fields such as type, code, checksum, identifier, sequence number, data, etc. ICMP messages can be verified by using commands such as ping,

traceroute, debug ip icmp, etc. message is sent back to the source device. TTL is used to mitigate Layer 3 route loops because it prevents packets from circulating indefinitely in a looped network topology. TTL also helps to conserve network resources and avoid congestion caused by looped packets.

The other options are not fields in a Layer 3 IPv4 packet header because:

– Checksum: Checksum is a 16-bit field that is used to verify the integrity of the IP header. Checksum is calculated by the source device and verified by the destination device based on the values of all fields in the IP header. Checksum does not mitigate Layer 3 route loops because it does not limit the number of hops that a packet can traverse.

– Protocol: Protocol is an 8-bit field that indicates the type of payload carried by the IP datagram. Protocol identifies the upper-layer protocol that uses IP for data transmission, such as TCP Transmission Control Protocol (TCP) Transmission Control Protocol (TCP) is a connection-oriented transport layer protocol that provides reliable, ordered, and error-checked delivery of data between applications on different devices. TCP uses a three-way handshake to establish a connection between two endpoints, and uses sequence numbers, acknowledgments, and windowing to ensure data delivery and flow control. TCP also uses mechanisms such as retransmission, congestion avoidance, and fast recovery to handle packet loss and congestion. TCP segments data into smaller units called segments, which are encapsulated in IP datagrams and have a specific format that contains fields such as source port, destination port, sequence number, acknowledgment number, header length, flags, window size, checksum, urgent pointer, options, data, etc. TCP segments can be verified by using commands such as telnet, ftp, ssh, debug ip tcp transactions, etc ., UDP User Datagram Protocol (UDP) User Datagram Protocol (UDP) is a connectionless transport layer protocol that provides

Question #47

Which Protocol Data Unit (PDU) represents the network layer PDU?

A . PDU3 – Packet
B . PDU4 – Segment
C . PDU1 – Signal
D . PDU2 – Frame

Lösung einblenden Lösung ausblenden

Question #48

What command is used to add a static route to a network 192.168.10.0/24 via gateway 192.168.1.1 on an Aruba router?

A . ip route 192.168.10.0 255.255.255.0 192.168.1.1
B . route add -net 192.168.10.0 netmask 255.255.255.0 gw 192.168.1.1
C . ip route 192.168.10.0/24 192.168.1.1
D . add route 192.168.10.0/24 via 192.168.1.1

Lösung einblenden Lösung ausblenden
