Huawei H12-323_V2.0-ENU Übungsprüfungen
Zuletzt aktualisiert am 10.05.2025- Prüfungscode: H12-323_V2.0-ENU
- Prüfungsname: HCIP-WLAN V2.0
- Zertifizierungsanbieter: Huawei
- Zuletzt aktualisiert am: 10.05.2025
When drawing obstacles using WLAN Planner, which of the following keys can be held down to make the obstacles straight lines?
- A . Alt
- B . Tab
- C . Ctrl
- D . Shift
When an enterprise is planning the IP address of the WLAN network, considering that there are few available VLANs in the existing network, for the convenience of management, the AP management VLAN and the user service VLAN can be planned as the same VLAN.
- A . True
- B . False
In a WLAN network, the radio wave energy radiated by an omnidirectional antenna in all directions in the horizontal and vertical planes is the same, while the radio wave energy radiated by a directional antenna in all directions in the horizontal and vertical planes is different.
- A . True
- B . False
In the terminal migration function, the target AP for the terminal migration needs to be confirmed before the terminal is migrated, and the target AP is selected from the terminal’s neighbor APs. Therefore, the wireless controller needs to collect, store and maintain the terminal’s neighbor AP information list. The neighbor AP information of the neighbor terminal is obtained by terminal probe collection and terminal Beacon report measurement.
Which of the following options belong to the terminal Beacon report measurement method? (Multiple choice)
- A . Active
- B . Probe
- C . Beacon Table
- D . Passive
Which of the following descriptions of WLAN network capacity optimization methods are correct? (Multiple choice)
- A . For scenarios where AP coverage overlaps, configure the load balancing function to guide some terminals to migrate to APs with relatively light loads.
- B . Configure the device and the terminal to communicate using the Wi-Fi 6 protocol to increase the terminal rate
- C . When the currently deployed APs cannot meet the capacity requirements, the number of APs can be increased.
- D . Limit user rates while ensuring user experience and ensure network availability for most users
When planning the network for an education scenario, which of the following descriptions of the sub-scenario network planning solutions are correct? (Multiple choice)
- A . In an independent office scenario, the area of a single room is usually less than 30 square meters. It is recommended to deploy one AP in each room.
- B . In an open office scenario, if the area of a single room is less than 120 square meters, it is recommended to deploy one AP.
- C . In a normal classroom, it is recommended to deploy one AP for every 100 students.
- D . In a lab scenario, if the room area is less than 120 square meters, deploy one AP in each room.
In a Mesh network, the successful establishment of a Mesh link includes two processes: Mesh neighbor discovery and Mesh connection management.
Which of the following are the ways to discover Mesh neighbors? (Multiple choice)
- A . Global Scan
- B . Passive Scanning
- C . Local Scan
- D . Active Scan
A retail store has newly built a WLAN network. For the in-store barcode scanner business, users require multiple barcode scanners to connect to the same SSID, but each barcode scanner needs to be configured with a different key, and there is no need to deploy an authentication server. Which of the following authentication methods can engineers use to meet the above requirements?
- A . WPA/WPA2-DPSK authentication
- B . WPA/WPA2-PPSK authentication
- C . Static WEP authentication
- D . WPA/WPA2-802.1X authentication

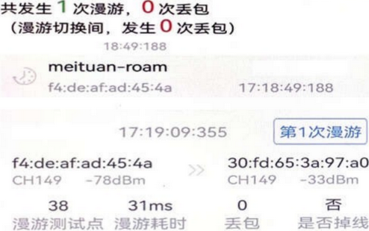

After the terminal associates with the wireless signal, a roaming test is performed through the CloudCampus APP. The roaming test results are shown in the figure below. Then the signal strength of the terminal associated with the AP after roaming is () dBm.
Which of the following descriptions about the indoor distributed AP6310SN is correct? (Multiple choice)
- A . The power splitter has multiple interfaces. The signal entering from any interface will be evenly divided into multiple signal outputs.
- B . When the AP is at the center of the indoor network, it is recommended to use a single power splitter to split the network from one to four or less.
- C . When the AP is at one end of the indoor network and the coverage area is large, it is recommended to use a coupler for signal splitting.
- D . Power splitters and couplers cannot be used in the same network at the same time
