Huawei H12-323_V2.0-ENU Übungsprüfungen
Zuletzt aktualisiert am 25.10.2025- Prüfungscode: H12-323_V2.0-ENU
- Prüfungsname: HCIP-WLAN V2.0
- Zertifizierungsanbieter: Huawei
- Zuletzt aktualisiert am: 25.10.2025
Which of the following should be paid attention to when surveying indoor coverage scenarios? (Multiple choice)
- A . Bandwidth requirements for coverage areas
- B . Whether the transmission path of the bridge link is blocked
- C . Location of the weak current room
- D . Whether to add a relay between the leaf site and the aggregation site
In a WLAN network, how many spatial streams can a single radio support at most according to the 802.11ac and 802.11ax protocols?
- A . 6
- B . 10
- C . 8
- D . 12
Export CAD drawings using WLAN Planner. Which of the following information can be included in the CAD drawings? (Multiple choice)
- A . Obstacles
- B . Simulation Effect
- C . AP Name
- D . AP Type
Which of the following factors should be considered when deploying the AP9330DN indoor distribution solution? (Multiple choice)
- A . Try to choose a shorter feeder
- B . It is recommended to use a dual-stream dual-frequency directional antenna
- C . Try to hide the antenna in the ceiling
- D . The antenna is facing the coverage area
Which of the following descriptions of WLAN site surveys in different typical scenarios is correct? (Multiple choice)
- A . The main load-bearing columns and partitions in office surveys affect coverage. If the AP is an integral ceiling, it should be placed near the maintenance port. If the AP is a metal ceiling, you can choose to place the AP under the ceiling or mount it on the wall.
- B . If the walls of school classrooms are made of reinforced concrete, the signal attenuation is relatively large. It is best to measure the attenuation during the survey. The location of the weak current room should be paid attention to in the teaching building.
- C . Ward inspection scenarios have high requirements for coverage strength, roaming effect, and bandwidth requirements. At the same time, attention should be paid to interference from medical equipment or areas where Wi-Fi signals are not allowed.
- D . The on-site environment of the stadium is complex and wiring is difficult, so the weak current room and wiring should be confirmed with the property management; if the distance is too far, you may need to consider adding an external switch, and the survey should focus on the mutual interference between APs and the installation method
In WLAN networks, the maximum MCS supported by Wi-Fi 6 is MCS11, and the maximum channel bandwidth supported is 160 MHz
- A . True
- B . False

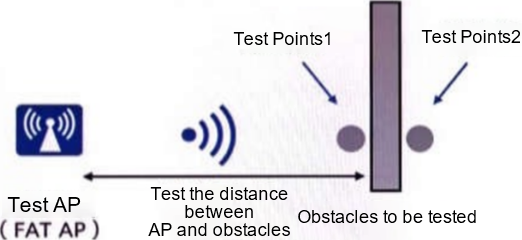

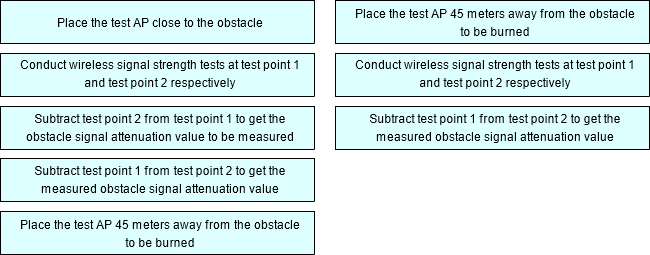

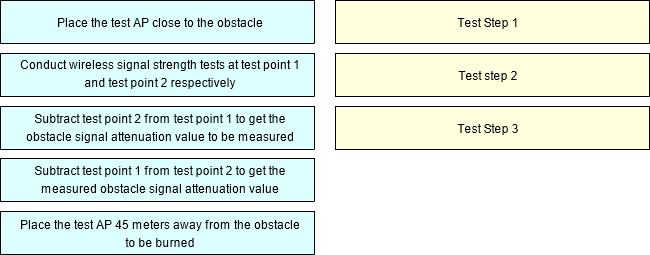

The figure shows a schematic diagram of the on-site engineering survey test obstacle attenuation. Please match the correct test content with the test steps.
Which of the following are ways for AP to switch to cloud mode? (Multiple choice)
- A . DHCP method
- B . Command line method
- C . CloudCampus APP
- D . Registration Center Method
Which of the following data encryption algorithms is used in the WEP security policy?
- A . 3DES
- B . AES
- C . RC4
- D . DES
When WAC works in cloud mode, the local license does not take effect. Otherwise, WAC cannot manage FIT APs.
- A . True
- B . False
