Huawei H12-323_V2.0-ENU Übungsprüfungen
Zuletzt aktualisiert am 25.10.2025- Prüfungscode: H12-323_V2.0-ENU
- Prüfungsname: HCIP-WLAN V2.0
- Zertifizierungsanbieter: Huawei
- Zuletzt aktualisiert am: 25.10.2025

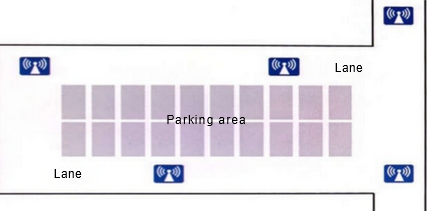

As shown in the figure, in the parking lot scenario, it is recommended to deploy APs above the lanes and deploy APs separately at intersections to ensure signal coverage continuity.
- A . True
- B . False
Which of the following working modes does the AP’s wired interface have? (Multiple choice)
- A . Auto mode
- B . root mode
- C . endpoint mode
- D . middle mode
When creating a new outdoor area, WLAN Planner supports importing judgment pictures, CAD drawings or map files. If the imported CAD drawings (DWG files) are used, WLAN Planner can quickly identify and set obstacles.
- A . True
- B . False
When using CloudCampus APP for project delivery, which of the following tools does not include the one that users need to log in to the WLAM Planner project with their account?
- A . Delivery
- B . Acceptance
- C . AP Calculator
- D . Site Survey
A customer’s existing network has a blind spot in wireless signal coverage, resulting in some wired terminals being unable to access the network.
Engineers adjust the transmit power of the surrounding AF to expand the coverage and fill in the blind spots. Which of the following configuration commands for manually adjusting the AR transmit power is correct?
- A . [WAC-wlan] ap-id1
[WAC-wlan-ap-1] radio
[WACwlan-radio-1/0] calibrate auto-txpower-select enable
[WAC-wlan-radio-1/0] eirp23
[ WAC-wlanradio-1/0 ] radio1
[ WAC-wlan-radio-1/1 ] calibrate auto-txpower-select enable
[ WAC-wlan-radio-1/1] eirp 23 - B . [WAC-wlan-ap-group-ap-group1] radio
[WACwlan-group-radio-ap-group1/0] calibrate auto-channel-select enable
[WAC-wlan-ap-group-ap-group1] radio1
[WAC-wlan-group-radio-ap-group1/1] calibrate auto-channel-select enable
WAC-wlan-group-radio-ap-group1/1] quit
[WAC-wlan-view] calibrate enable manua
[WAC-wlan-view] calibrate manual startup - C . [WAC-wlan] ap-id 1
[WAC-wlan-ap-1] radio 0
[WAC-wlan-radio-1/0] calibrate auto-txpower-select disable
[WAC-wlan-radio-1/0] eirp 23
[WAC-wlan-radio-1/0] radio 1
[WAC-wlan-radio-1/1] calibrate auto-txpower-select disable
[WAC-wlan-radio.1/1jeirp 23 - D . [WAC-wlan-ap-group-ap-group1] radio 0
[WAC-wlan-group-radio-ap-group1/0] calibrate auto txpower-select enable
[WAC-wlan-ap-group-ap-group1] radio
[WAC-wlan-group-radio-ap-group1/1] calibrate auto-txpower-select enable
[WAC-wlan-group-radio-ap-group1/1] quit
[WAC – wlan-view] calibrate enable manual
[ W AC-wlan-view ] calibrate manual startup
In a WLAN network environment, wireless client access can be controlled through blacklist and whitelist policies. Which of the following statements about blacklist and whitelist is wrong?
- A . Enable the whitelist function. If the whitelist is not empty, only STAs matching the whitelist can go online, and other STAs cannot go online.
- B . Enable the blacklist function. If the blacklist is empty, any STA is allowed to go online.
- C . Enable the blacklist function. If the blacklist is not empty, STAs matching the blacklist cannot go online, but other STAs can go online.
- D . Enable the whitelist function. If the whitelist is empty, no STA is allowed to go online.
