HOTSPOT

You need to implement the planned changes for the new containers.

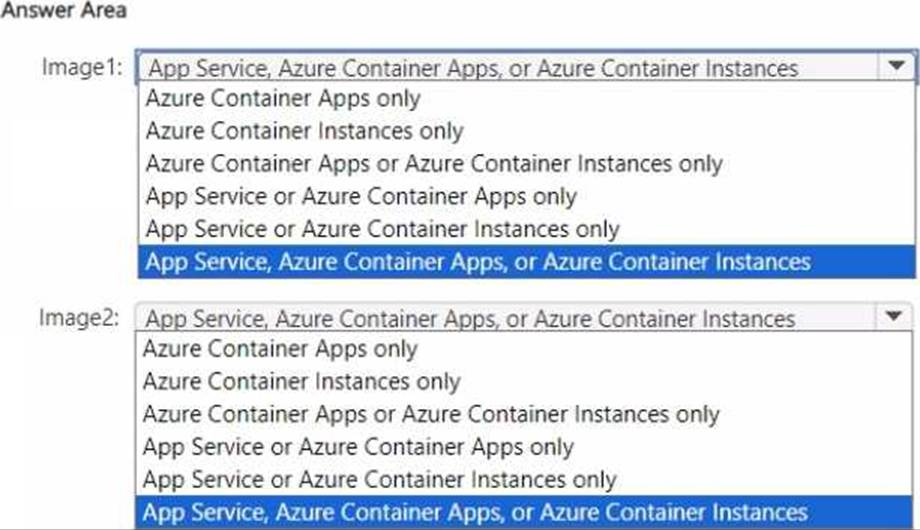

Which Azure services can you use for each image? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

Richtige Antwort:

HOTSPOT

You have an Azure subscription that contains the virtual networks shown in the following table.

The subnets have the IP address spaces shown in the following table.

You plan to create a container app named contapp1 in the East US Azure region.

You need to create a container app environment named con-env1 that meets the following requirements:

• Uses its own virtual network.

• Uses its own subnet.

• Is connected to the smallest possible subnet.

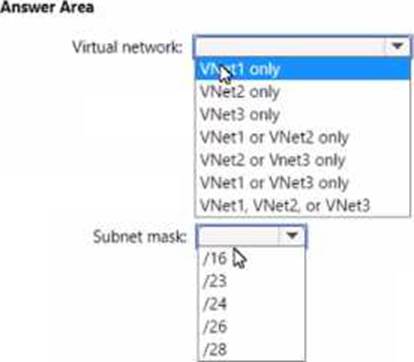

To which virtual networks can you connect con-env1, and which subnet mask should you use? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

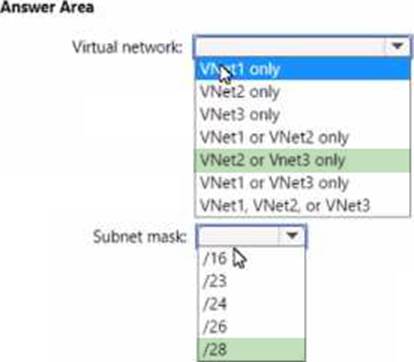

Richtige Antwort:

Explanation:

Virtual Network: You can connect con-env1 to VNet2 and VNet3 only. This is because VNet1 is in a different region than the container app, which is East US. According to the web search results, you can only connect a container app environment to a virtual network that is in the same region as the container app1. Therefore, VNet1 is not a valid option. VNet2 and VNet3 are both in the same region as the container app, and they have enough available IP addresses to support a container app environment.

Subnet mask: You should use /28 as the subnet mask for con-env1. This is because /28 is the smallest possible subnet mask that can accommodate a container app environment. According to the web search results, a container app environment requires a minimum of 16 IP addresses in a subnet2. A /28 subnet mask provides 16 IP addresses, while a /26 subnet mask provides 64 IP addresses, a /24 subnet mask provides 256 IP addresses, a /23 subnet mask provides 512 IP addresses, and a /16 subnet mask provides 65,536 IP addresses. Therefore, /28 is the most efficient choice for minimizing the subnet size.

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have a Microsoft Entra tenant named Adatum.com and an Azure Subscription named Subscription1. Adatum.com contains a group named Developers. Subscription1 contains a resource group named Dev.

You need to provide the Developers group with the ability to create Azure logic apps in the Dev resource group.

Solution: On Dev, you assign the Logic App Contributor role to the Developers group.

Does this meet the goal?

Lösung einblenden Lösung ausblenden

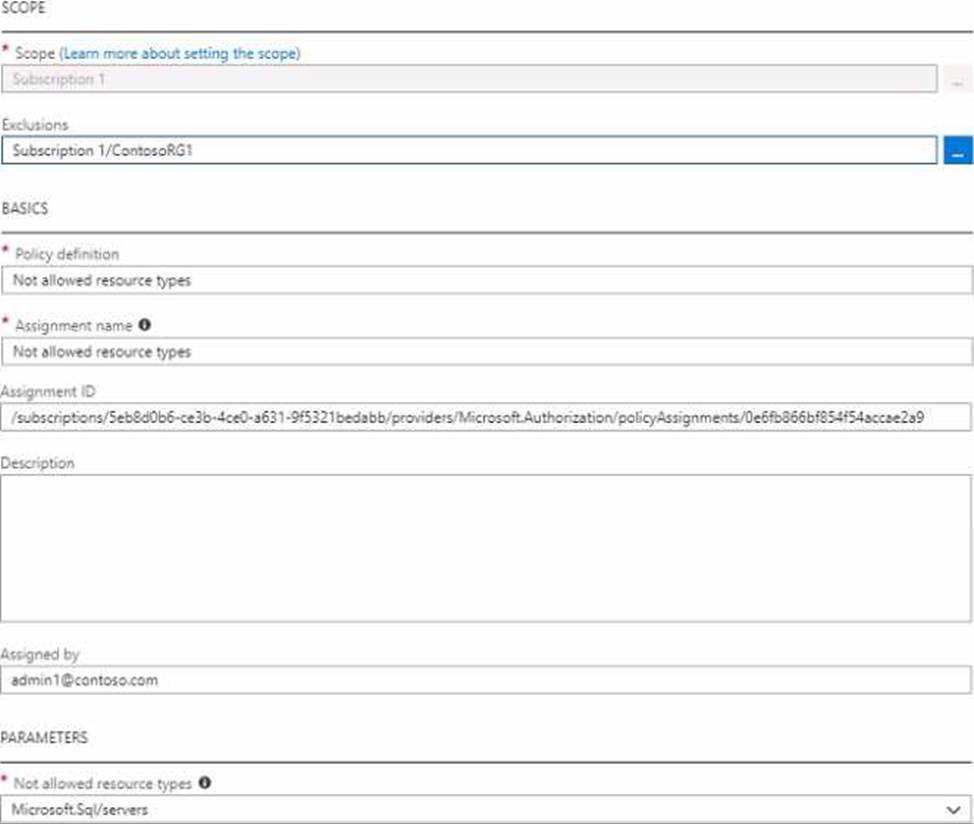

You have an Azure policy as shown in the following exhibit.

What is the effect of the policy?

Lösung einblenden Lösung ausblenden

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You manage a virtual network named VNet1 that is hosted in the West US Azure region.

VNet1 hosts two virtual machines named VM1 and VM2 that run Windows Server.

You need to inspect all the network traffic from VM1 to VM2 for a period of three hours.

Solution: From Performance Monitor, you create a Data Collector Set (DCS).

Does this meet the goal?

Lösung einblenden Lösung ausblenden

HOTSPOT

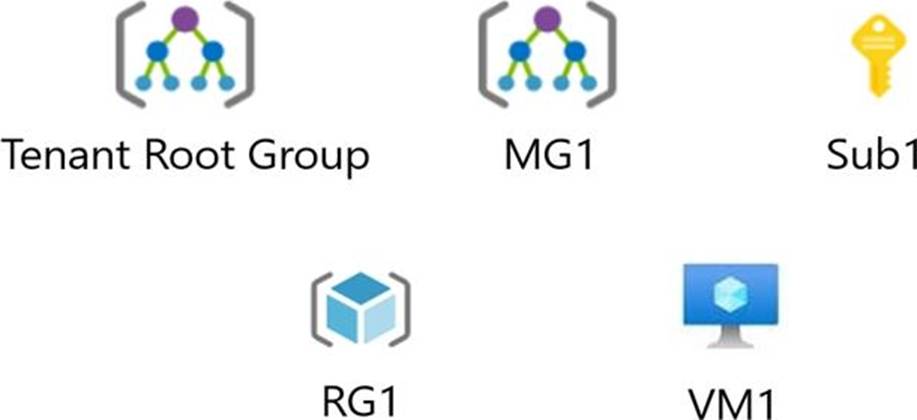

You have the Azure resources shown on the following exhibit.

You plan to track resource usage and prevent the deletion of resources.

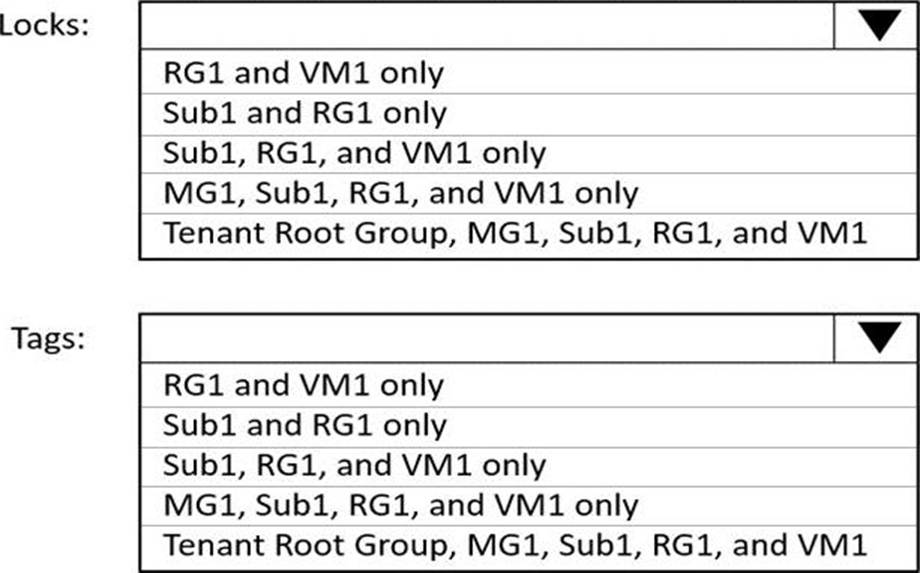

To which resources can you apply locks and tags? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

Richtige Antwort:

Explanation:

Box 1: Sub1, RG1, and VM1 only

You can lock a subscription, resource group, or resource to prevent other users in your organization from accidentally deleting or modifying critical resources.

Box 2: Sub1, RG1, and VM1 only

You apply tags to your Azure resources, resource groups, and subscriptions.

Reference:

https://docs.microsoft.com/en-us/azure/azure-resource-manager/management/lock-resources?tabs=json

https://docs.microsoft.com/en-us/azure/azure-resource-manager/management/tag-resources?tabs=json

You have a Standard Azure App Service plan named Plan1.

You need to ensure that Plan1 will scale automatically when the CPU usage of the web app exceeds 80 percent.

What should you select for Plan1?

Lösung einblenden Lösung ausblenden

You have an Azure subscription.

You need to receive an email alert when a resource lock is removed from any resource in the subscription What should you use to create an activity log alert in Azure Monitor?

Lösung einblenden Lösung ausblenden

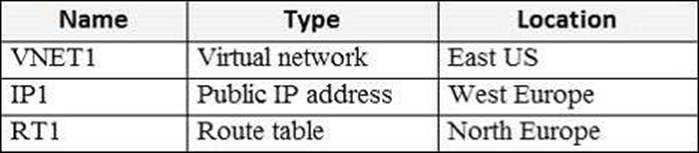

You have an Azure subscription that contains the resources shown in the following table.

You need to create a network interface named NIC1.

In which location can you create NIC1?

Lösung einblenden Lösung ausblenden

You have an Azure subscription.

Users access the resources in the subscription from either home or from customer sites. From home, users must establish a point-to-site VPN to access the Azure resources. The users on the customer sites access the Azure resources by using site-to-site VPNs.

You have a line-of-business app named App1 that runs on several Azure virtual machine. The virtual machines run Windows Server 2016.

You need to ensure that the connections to App1 are spread across all the virtual machines.

What are two possible Azure services that you can use? Each correct answer presents a complete solution. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden
