HOTSPOT

You have a GitHub repository that contains a work ow named WF1. WF1 is used to build code for an app named App1.

You need to add a build status badge to the README.md le in the repository for App1.

How should you complete the URL for the badge? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

Richtige Antwort:

You have an Azure subscription.

You use Bicep templates to deploy websites and Azure SQL infrastructure.

You need to automate the deployments by using Azure Pipelines and a self-hosted agent that runs on two virtual machines. The solution must minimize administrative effort.

What should you do first?

Lösung einblenden Lösung ausblenden

You have a project in Azure DevOps named Project1. Project1 contains a pipeline that builds a container image named Image1 and pushes Image1 to an Azure container registry named ACR1. Image1 uses a base image stored in Docker Hub. You need to ensure that Image1 is updated automatically whenever the base image is updated.

What should you do?

Lösung einblenden Lösung ausblenden

You configure an Azure Application Insights availability test.

You need to notify the customer services department at your company by email when availability is degraded.

You create an Azure logic app that will handle the email and follow up actions.

Which type of trigger should you use to invoke the logic app?

Lösung einblenden Lösung ausblenden

Your company has an Azure DevOps project,

The source code for the project is stored in an on-premises repository and uses on an on-premises build server.

You plan to use Azure DevOps to control the build process on the build server by using a self-hosted agent.

You need to implement the self-hosted agent.

You download and install the agent on the build server.

Which two actions should you perform next? Each correct answer presents part of the solution.

Lösung einblenden Lösung ausblenden

DRAG DROP

You have several Azure virtual machines that run Windows Server 2019.

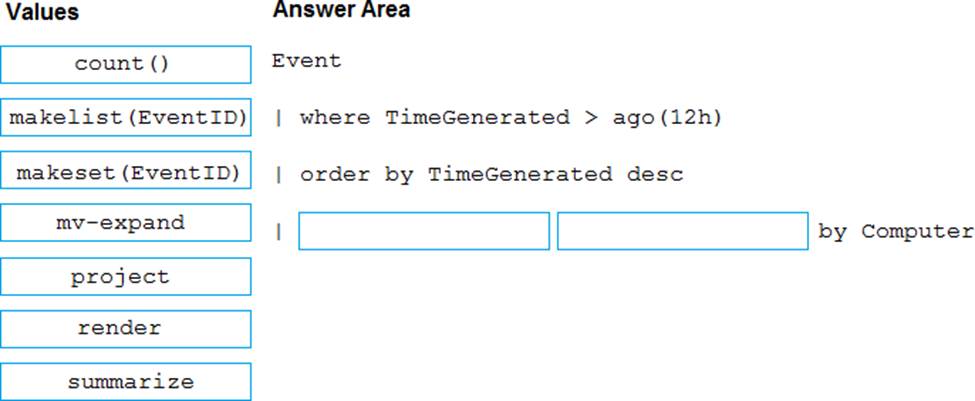

You need to identify the distinct event IDs of each virtual machine as shown in the following table.

How should you complete the Azure Monitor query? To answer, drag the appropriate values to the correct locations. Each value may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

Richtige Antwort:

Explanation:

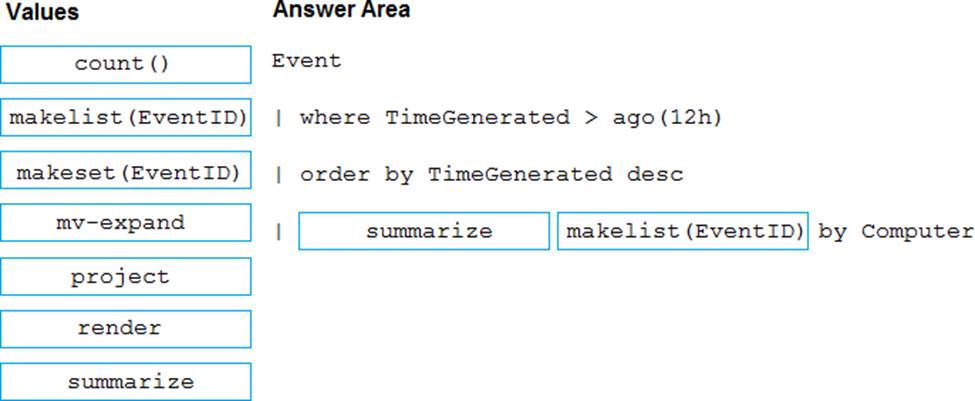

You can use makelist to pivot data by the order of values in a particular column. For example, you may want to explore the most common order events take place on your machines. You can essentially pivot the data by the order of EventIDs on each machine. Example:

Event

| where TimeGenerated > ago(12h)

| order by TimeGenerated desc

| summarize makelist(EventID) by Computer

Reference: https: //docs.microsoft.com/en-us/azure/azure-monitor/log-query/advanced-aggregations

DRAG DROP –

You provision an Azure Kubernetes Service (AKS) cluster that has RBAC enabled. You have a Helm chart for a client application.

You need to configure Helm and Tiller on the cluster and install the chart.

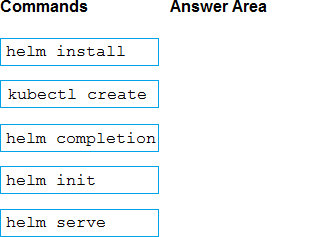

Which three commands should you recommend be run in sequence? To answer, move the appropriate commands from the list of commands to the answer area and arrange them in the correct order.

Lösung einblenden Lösung ausblenden

Richtige Antwort:

Explanation:

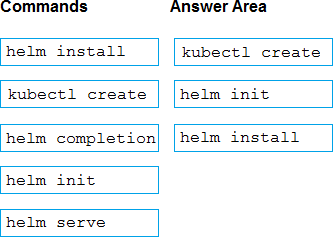

Step 1: Kubectl create –

You can add a service account to Tiller using the –service-account <NAME> ag while you’re configuring Helm (step 2 below). As a prerequisite, you’ll have to create a role binding which specifies a role and a service account name that have been set up in advance.

Example: Service account with cluster-admin role

$ kubectl create -f rbac-con g.yaml serviceaccount "tiller" created clusterrolebinding "tiller" created

$ helm init –service-account tiller

Step 2: helm init

To deploy a basic Tiller into an AKS cluster, use the helm init command.

Step 3: helm install

To install charts with Helm, use the helm install command and specify the name of the chart to install.

Reference:

https: //docs.microsoft.com/en-us/azure/aks/kubernetes-helm

https: //docs.helm.sh/using_helm/#tiller-namespaces-and-rbac

You have a private GitHub repository.

You need to display the commit status of the repository on Azure Boards.

What should you do first?

Lösung einblenden Lösung ausblenden

HOTSPOT –

You need to deploy Azure Kubernetes Service (AKS) to host an application.

The solution must meet the following requirements:

✑ Containers must only be published internally.

✑ AKS clusters must be able to create and manage containers in Azure.

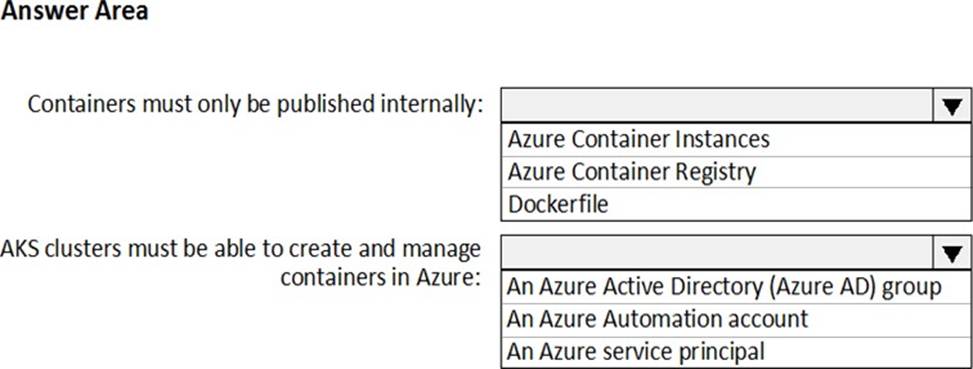

What should you use for each requirement? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden

Richtige Antwort:

Explanation:

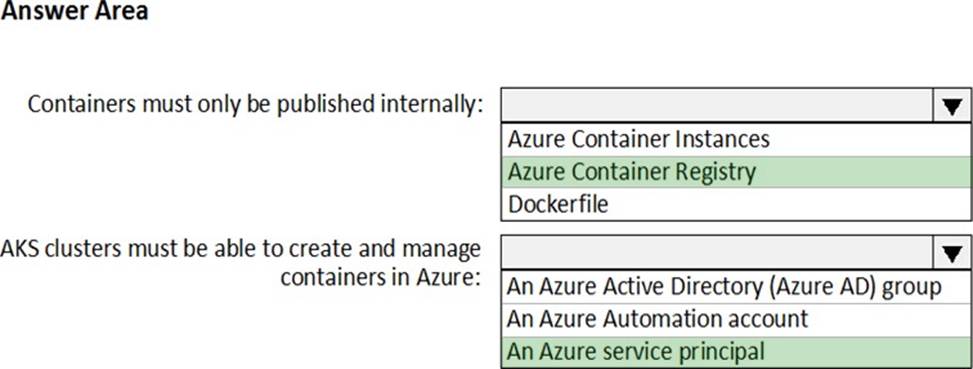

Box 1: Azure Container Registry

Azure services like Azure Container Registry (ACR) and Azure Container Instances (ACI) can be used and connected from independent container orchestrators like kubernetes (k8s). You can set up a custom ACR and connect it to an existing k8s cluster to ensure images will be pulled from the private container registry instead of the public docker hub.

Box 2: An Azure service principal

When you’re using Azure Container Registry (ACR) with Azure Kubernetes Service (AKS), an authentication mechanism needs to be established. You can set up AKS and ACR integration during the initial creation of your AKS cluster. To allow an AKS cluster to interact with ACR, an Azure Active Directory service principal is used.

Reference:

https: //thorsten-hans.com/how-to-use-private-azure-container-registry-with-kubernetes

https: //docs.microsoft.com/en-us/azure/aks/cluster-container-registry-integration

You plan to use Terraform to deploy an Azure resource group from a Windows system.

You need to install the required frameworks to support the planned deployment.

Which two frameworks should you install? Each correct answer presents part of the solution. NOTE: Each correct selection is worth one point.

Lösung einblenden Lösung ausblenden
